Design & Drawing

Profection Design and Drafting's team has extensive experience and capability in the design of hydro-mechanical equipment as it relates to the bulk water industry.  We use state of the art 3D modeling and drafting software enabling us to provide our clients with rendered 3D computer models, assembly video’s, and manufacturing drawings.  Typical design aspects for this industry consist of

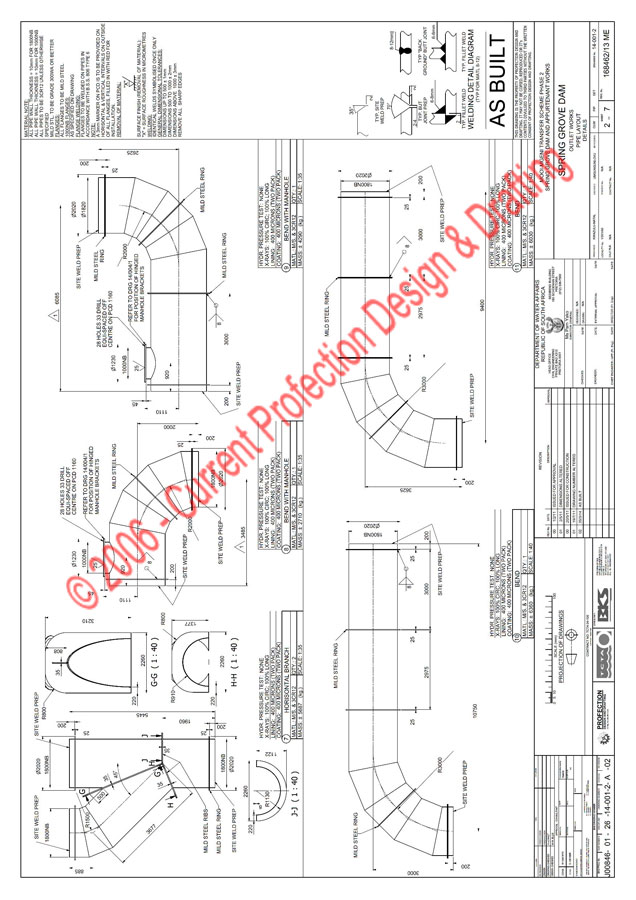

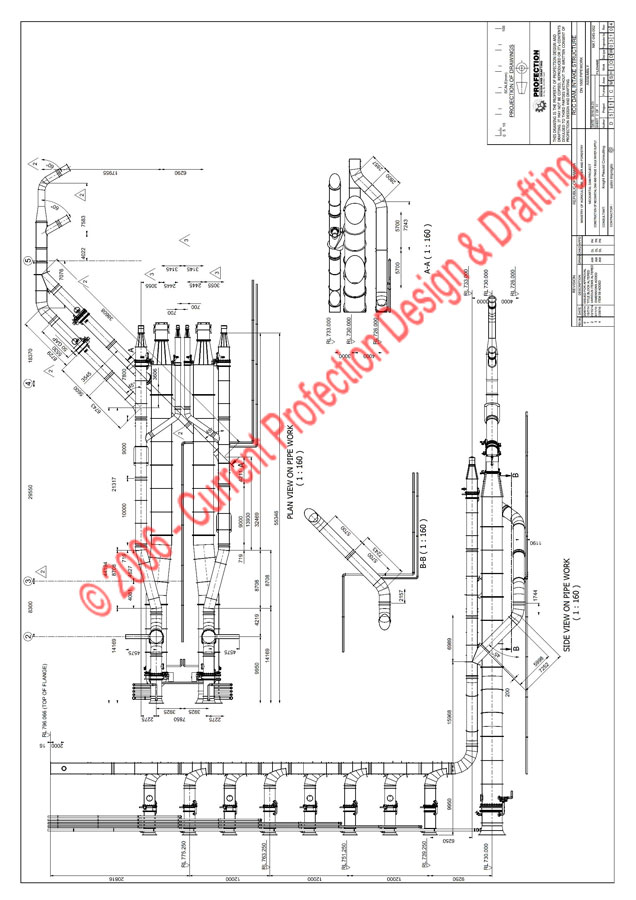

•     •    Pipe Work Layouts

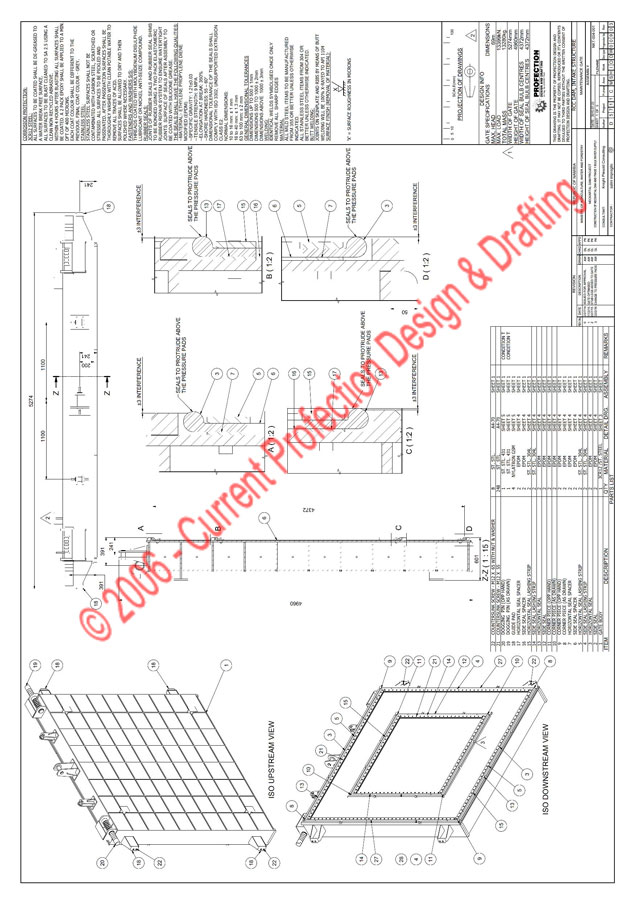

•     •    Gates
•           º    Hydraulic
•           º    Maintenance
•           º    Emergency
•           º    Bonneted Sliding
•           º    Radial
•           º     Taintor
•     •    Grapple Systems

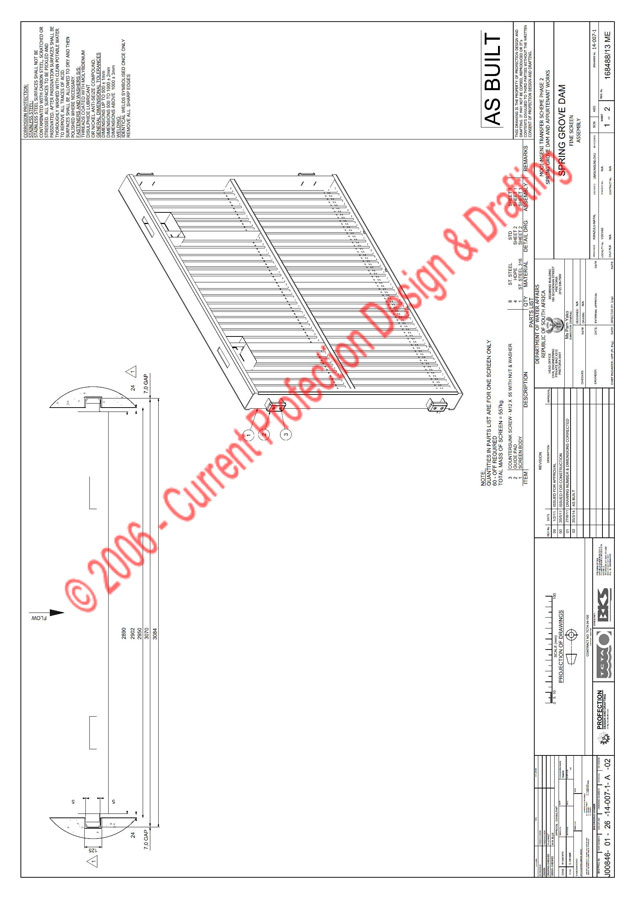

•     •    Guides and Sealing Frames
•     •    Steel Tunnel Linings
•     •    Gantry/hoist Crane Structures
•     •    Sundry Steel Work
•           º    Ladders
•           º    Platforms

•           º    Walkways
